380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

Price : CN¥252,525.00/sets 1-2 sets

Name : CPVC Pipe Making Machine

plastic processed : PVC

application : PIPE, Profile, Plates

Screw Design : Double-screw

twin screw type : Counter-rotating conical Twin-screw

Screw Material : 38CrMoALA

screw diameter (mm) : 65 mm

screw l/d ratio : 30:1

Screw Speed (rpm) : 60 rpm

place of origin : Shandong, China

brand name : DEERMA

voltage : 380V 50HZ 3Phase (Customized)

dimension(l*w*h) : About 26m*2m*2m

power (kw) : 37

warranty : 1 Year

key selling points : High Productivity

video outgoing-inspection : Provided

core components : Bearing, Pump, Gear, Engine

machinery test report : Provided

PVC Pipe : 20-110mm & 75-160mm

Raw Material : PVC Resin , CACO3, Additive

Production speed : 8-15m/min

Total installed /Consumption power : 75.85kw / 60kw

Motor brand : Siemens Beide

Inverter : ABB

Temperature meter : OMRON

Contactor : SCHNEIDER

Automatic Grade : Automatic

Condition : New

Showroom Location : Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Romania, South Africa, Nigeria

Applicable Industries : hotels, Farms, Home Use

Warranty of core components : 1 Year

Weight : 5 KG

Contact Now

Home Cpvc Pipe Extrusion Machine / Production Line With Counter-Rotating Conical Twin-Screw

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

Product Description

Production Process for cpvc pipe machine

  1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
  2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum Calibration - Haul off - Printer -Cutter- Stacket - Belling)
  3. Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)

cpvc pipe machine Characteristic

Pipe range

20-63mm single

20-63mm dual

75-160mm

110-315mm

315-630mm

Extruder

SJZ51/105

SJZ65/132

SJZ80/156

SJZ80/156

SJZ92/188

Extruder power

18.5kw

37kw

37kw

55kw

110kw

Extrusion capacity

120kg/h

250kg/h

250kg/h

360kg/h

800kg/h

Max. Production speed

12m/min

10m/min

6 m/min

3 m/min

1.2m/min

PVC PIPE MACHINE PICTURES

1. SJSZ-65/132 PVC PIPE MACHINE

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

1. SJSZ-65/132 conical twin screw extruder equipped with Automatic Spring Loader

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

2. Die head and Mould

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

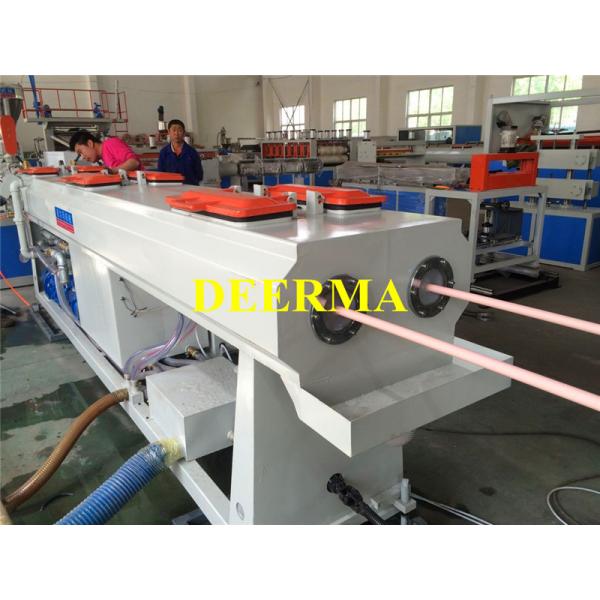

3. Vacuum calibration unit

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

4.Haul- off unit

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

5.Cutter unit

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

Company Information

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

380V 50HZ CPVC Pipe Making Machine 60rpm CPVC Pipe Manufacturing Machine

FAQ

Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000

Q: Quality Control Management

Q: Is there quality control on all production lines?

Yes, all production lines have adequate quality control

Q:Do the QA/QC inspectors work independently from the production line? Yes

Q:How many QA/QC inspectors in total? 4

Videos For Machine

20-63mm PVC Double Pipe Machine

https://youtu.be/jCUWWvSPXyI

https://youtu.be/dwQQo7_xpQc

https://youtu.be/0AYNFvUvLzw

20-50mm PVC Double Pipe Machine

https://youtu.be/lGeTquUUrgY

https://youtu.be/1m9OTjXYw8c

16-63mm PVC Double Pipe Machine

https://youtu.be/7X1X4z_dfN4

16-63mm PVC Pipe Machine

https://youtu.be/YNGqpGhLgtY

63-200mm PVC Pipe Machine

https://youtu.be/NxIdEisSSeg

75-160mm PVC Pipe Machine

https://youtu.be/7TxqbXNZTQU

https://youtu.be/mveQc8W5YvI

https://youtu.be/_7pqVLTeSrY

We have three this production lines in our showroom for other customer , welcome to visit our factory
